The Spectrophotometer CM-36dGV, successor to the Spectrophotometer CM-3610A, is a high-precision and high-reliability benchtop color measuring instrument with advanced functions catering to today’s measurement needs.
The CM-36dGV can measure color in either reflectance or transmittance. Equipped with a 60° gloss sensor (ISO 2813 compliant), it enables simultaneous color and gloss measurement that improves work efficiency.

It comes with the patented Numerical UV Control (NUVC) that offers accurate and simple UV adjustments when measuring samples that contain optical brighteners (OBA) such as pulp, paper, and textiles.
The CM-36dGV offers a tight inter-instrument agreement (IIA) of ΔE*ab< 0.12 ΔE*ab< 0.12 and repeatability of σ∆E*ab < 0.02, assuring the measurement and its data are communicated within the supply chain, from suppliers to finished product maker, consistently.

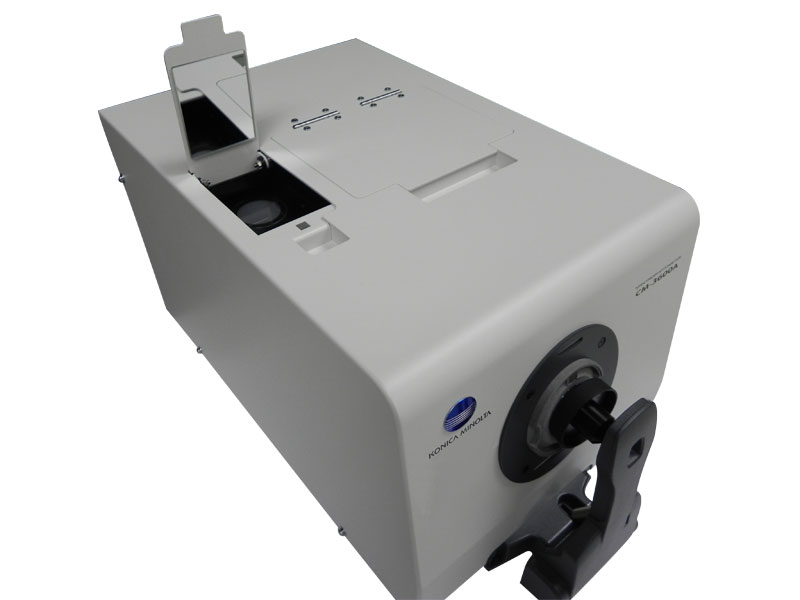

The Spectrophotometer CM-36dG, successor to the Spectrophotometer CM-3600A, is a highly accurate and repeatable benchtop color measurement instrument that comes with advanced functions for today’s measurement needs.
The CM-36dG is capable of measuring color in either reflectance or transmittance. It also comes with a 60° gloss sensor (ISO 2813 compliant), enabling the simultaneous measurement of color and gloss that improves work efficiency.
Equipped with the patented Numerical UV Control (NUVC), the CM-36dG offers precise and easy UV adjustments when measuring samples that contain optical brighteners (OBA) such as paper and textiles.

With a tight inter-instrument agreement (IIA) and repeatability of ΔE*ab< 0.12 and σ∆E*ab < 0.02, respectively, the CM-36dG can ensure the measurement and its data are communicated within the supply chain, from suppliers to finished product maker, consistently.

The Spectrophotometer CM-36d is an entry-level benchtop color measuring instrument with advanced functions that provide cost-effective solutions to today’s measurement needs.
With an inter-instrument agreement (IIA) of ΔE*ab< 0.15 and repeatability of σ∆E*ab < 0.03, the CM-36d can assure the measurement and its data are communicated within the supply chain consistently.

Highly reliable and accurate – one of the most reliable and accurate spectrophotometers available by utilizing state-of-the-art technology
Windows compatible – Compatibility allows it to be controlled from a computer with Windows software
Measurement area switching – flexibility allow users to select either 25.4mm, 8mm, or 3x5mm measurement areas
Can measure reflective, transparent, and fluorescent color – using SCI/SCE switching, diffused lighting, and/or UV cut filters, users can easily measure reflective, transparent, and reflective colors
International standards – many standards are included in the CM-3700ACIE, such as ISO, ASTM, DIN, and JIS
Xenon flash – allows even very dark shades to be accurately measured with this instrument
USB Connectivity – faster communication and an easier connection to PCs with the USB interface
Dampening sample holder – not only does the featured long arm enable measuring the center of an A4-sized sample, a damper also provides a “slow-close” effect, preventing the sample holder from slamming shut, which could possibly damage the measurement sample
Protective frame power switch – to decrease the likelihood of accidentally powering off during operation, a protective frame has been added around the power switch

● Easy 1-2-3 measurement – 1. Switch power on, 2. Position sample, 3. Press MEAS
● Large color LCD – easy to read, displays data graphically and numerically, and shows PASS/FAIL judgments and color plots
● Wizard for on-screen operation guidance – users making instrument settings are provided guidance by the Operation Wizard
● Multi-user friendly – utilizing a USB memory stick, users can store each user’s settings and later read these settings back into the instrument for the next use. The USB can also be used to save target and measurement data
● Automatic calibration – Set the unit to Automatic Calibration and every time the unit is turned on calibration can be performed automatically
● 8 languages– can be shown in English, German, Japanese, Italian, French, Portuguese, Spanish, and simplified Chinese
● Top-port design – positioning the sample is easy with the top-port design
● Three measuring areas – adapt to different sample sizes with available target masks, including 30mm, 8mm, 3mm
● Measures variety of samples – optional Petri dish accessory enables measurement of pellets, granules, powders, chunky samples, pastes, and opaque liquids. Simply place solids on top. For small samples the 3mm
● target mask is suitable, and for tiny unique samples, custom mini Petri dishes are available
● Large transmittance chamber – a large transmittance chamber with no sides is revealed by sliding open the unit, so even large sample sheets up to 60mm thick can be inserted and measured
● Liquid measurements using cells – can measure liquids with optional cells, lengths 2mm, 10mm, and 20mm in order to measure different densities
● Internal calibration for standard chemical/pharmaceutical indices – Gardner, Hazen/APHA, Iodine Color Number, US Pharmacopeia and European Pharmacopoeia can all be internally calibrated
● Spectral absorbance measurement – a variety of industries can utilize new Graphical and numerical Absorbance displays

● 45° illumination with 6 viewing angles (-15°/15°/25°/45°/75°/110° aspecular)
● Measurement speed: approximately 4.5 seconds
● Patented double path illumination system for inclination compensation
● Ø12mm/Ø6mm measurement area
● Long life white LED illumination
● 3.5 inch color LCD display
● Vertically shaped for easy handling and positioning
● Rechargeable lithium ion battery
● Wireless and USB communication

● Color measurement: di:8°, de:8° (diffused illumination, 8° viewing angle)
● Goss measurement: 60°
● Tight Inter-Instrument Agreement (IIA)
Color: ΔE*ab< 0.12 (Average of 12 BCRA series II color Tiles)
Gloss: ±0.2 GU (0 – 9.99 GU)
● High Repeatability
Color: ΔE*ab < 0.02
Gloss: < 0.1 GU (0 – 9.99 GU)
● 2 measurement areas – Ø8mm or Ø3mm
● 100% / 0% / Adjusted (Instantaneous numerical adjustment of UV with no mechanical filter movement required); 400nm UV cutoff filter
● Viewfinder for easy target alignment and positioning
● JOB function*1 for creating image- based workflows
*1 Setting enabled by SpectraMagic NX

● di:8°, de:8° (diffused illumination, 8° viewing angle)
● High Inter-Instrument Agreement(IIA)
∆E*ab< 0.12; Average of BCRA 12 Tiles (CM-26d)
∆E*ab< 0.20; Average of BCRA 12 Tiles (CM-25d)
● Changeable measuring apertures -Ø8mm or Ø3mm measurement areas (CM-26d)
● Viewfinder for easy target alignment
● JOB function*1 for creating workflows (with graphical instructions)
● Configuration Tool CM-CT1 software (standard accessory)
● Bluetooth ready
*1 Setting enabled by SpectraMagic NX

● Color Measurement: 45c:0 (45°illumination / 0°viewing angle)
● Gloss Measurement: 60°
● Inter-Instrument Agreement (IIA):
● Color: ∆E*ab< 0.15 (Average of BCRA 12 Tiles)
● Gloss: ∆GU< +0.2GU (0-10GU), ∆GU< 0.5GU (10-100GU)
● Circumferential illumination optical system
● Measurement Speed: approximately 1 second
● Vertically shaped for easy handling and positioning
● Rechargeable lithium ion battery
● Wireless and USB communication

● Compact and lightweight – portable, handheld color measuring instrument
● Designed to fit in you hand – comfortable to hold and vertically formatted for easy positioning
● Bluetooth compatible – send data to a printer or computer via Bluetooth wireless communication or it can easily connect using a USB cable
● Large memory capacity – allows the storage of up to 1,000 sets of target data and 4,000 sets of measurement data
● Switching for SCI and SCE measurement is automatic
● Easy to operate – features dedicated buttons for frequently-used operations such as target colors or call up menus adds to easy operation
● Color LCD screen – Display abundant information on the screen such as pseudocolor, spectral graphs, and color difference graphs
● Color Data Software (optional) – one screen displays all the information for an application and make edits as needed, which can be printed for later use

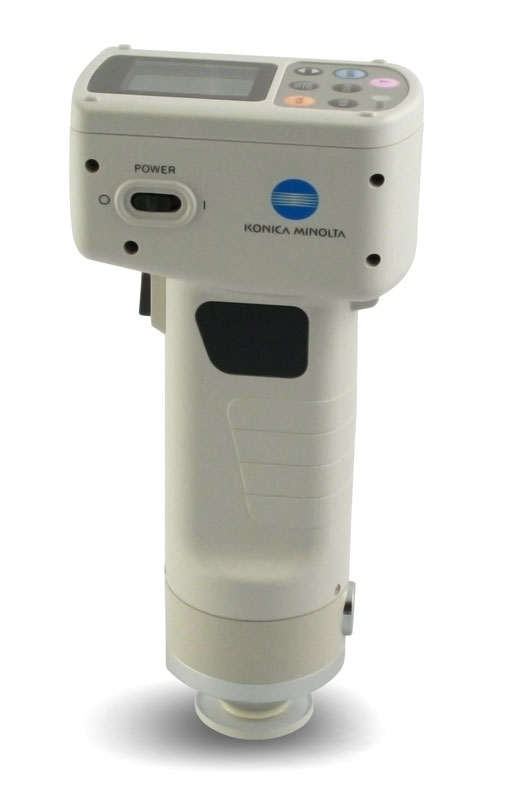

● Easy-to-use – easy-to-understand menus and buttons
● Portable – can be battery powered for optimal portability, or use an AC adapter, take measurements anywhere thanks to its light-weight design
● Data processor – measuring head can measure alone or with the data processor, allowing advanced features to be used and labeling on-site is easy with the built-in high-speed printer
● User defined evaluation formulas – allows users to configure the color calculation formula and evaluation formula as desired; useful for customized or industry-specific formulas
● Easy to upgrade – the successor to, and compatible with, its predecessor, the CR-300
● LCD screen – capable of displaying pass/fail information and color-difference graphs
● Text entry – data processor allows the user to enter calibration channels and the names of color difference target colors, as well as input comments
● Six languages – English, Spanish, Italian, Japanese, French, and German
● Stores Measurements – can store up to 1,000 measurements on its own, or 2,000 when the data processor is attached
● Calibration function – when the instrument needs to be calibrated it automatically notifies user
● Abundant accessories – many available accessories

● Quick, easy measurement of chlorophyll levels in plant leaves without damaging the leaf.
Measurements are taken by just closing the measuring head on the leaf. Since the leaf is not cut off or damaged in any other way, the same leaf can be measured as the plant grows.

● Trend graph display
Up to 30 measurements can be stored in memory and displayed on a trend graph, so that changes in measurements over time can be seen and abnormal values can be noticed at a glance.

● Water-resistant
The SPAD-502Plus is water-resistant (IPX-4) so it can be used outdoors even in the rain.

● Compact and lightweight for portability
The SPAD-502Plus is small enough to fit in a pocket and weighs only 200g, so it can be taken anywhere.

● Low power consumption
The SPAD-502Plus uses LED light sources, resulting in extremely low power consumption, with approximately 20,000 measurements from one set of fresh alkaline-manganese batteries

● Monitoring of growth and health of plants
The SPAD-502Plus can be used to monitor the growth and health status of a wide variety of agricultural products, including wheat, rice, corn, cotton, etc.

● Nitrogen fertilization optimization
The SPAD-502Plus can be used for determining when and how much nitrogen fertilizer should be provided to plants. Optimizing fertilization in this way leads to not only greater yields of higher quality, but also results in less over-fertilization, reducing environmental contamination due to the leaching of excess fertilizer into the soil and underground water.

● Simple operation, only necessary functions
● Built in storage for up to 1,000 measurements including target data
● On board Utility Software application
● Instrument is battery operated and handheld providing maximum portability
● Competitively priced, great for companies that need multiple instruments
● Protective cap allows direct measurement of pastes, powders, or wet objects
● Large LCD displays one of eight color spaces/colorimetric indexes
● Printer connectivity provides for hard copies of data via USB
● Averaging function allows for several measurement
● Optional AC adaptor provides external power eliminating the use of batteries

● Simple operation: 1- Switch on, 2- Perform white calibration, 3- Measure sample
● Display measurement in Baking Contrast Units (BCU) or CIELAB (L*a*b*)
● Averaging function allows for multiple measurement
● Pulsed xenon lamps
● 1000 data memory capacity
● USB connectivity
● Built-in data management software

● Easy to use and ergonomic, making it great for first-time users
● Color difference expressed in L*a*b* and dE* or L*C*H* and dE* on the LCD screen
● Built in storage for up to 1,000 measurement including target data
● USB connectivity for easy PC connection
● On board Utility Software application
● Lightweight, compact size and battery-operated allowing it to be taken almost anywhere
